Automotive Relay 4PIN 12V 30A FUSE FLS825FU

03/10/2020

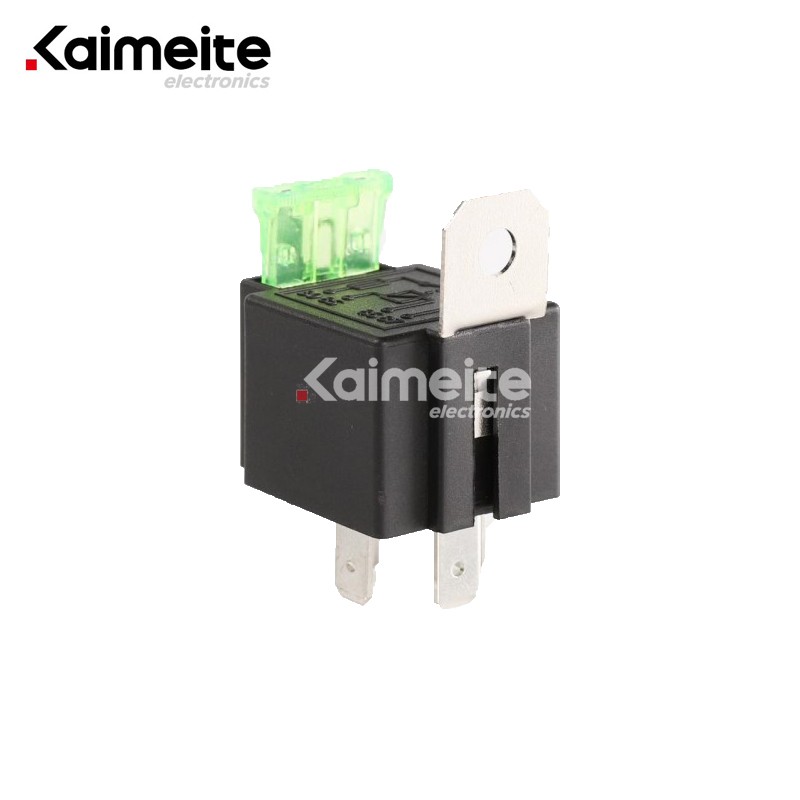

Automotive Relay 4PIN 12V 30A FUSE FLS825FU


微信图片_20200310162605


Standard automotive relay, very popular in the device, its advantage is to use 30A fuse to protect the working circuit


This solution is very convenient, saves space, and makes it easy to quickly identify and repair damaged circuits.



Relay Features:



  • 40A switching capability

  • 1 form A,1 form C contact form

  • Various mounting terminations availab

Relay Specification:



Contact Form

1ADielectric Strength(Coil and Contact)500VAC/M
Contact Material

AgSno2

Ambient Temperature

-40°C~+85°C
Max. Operating Current

30A

Operate/Release Time

10ms/10ms
Max. Operating Voltage

27VDC

Mechanical Life

1 X106
Insulation Resistance

100MΩ

Electrical Life(min)

1 X105
Rated Load(Resistive load)

1A:30A 13.5VDC 15A 27VDC

Terminal Type

Terminal

Coil Ratings:



Normal voltage(VDC)Pick-up voltage(VDC)Drop-out voltage(VDC)Coil resistance(Q±10%)Parallel resistance(Q±5%)Equivalent resistance(Q±10%)Power  consumption(W)
128.41.290- - 1.6
128.41.280 680 79.5 1.8
2416.82.4360 - - 1.6
2416.82.4320 2700 317.6 1.8

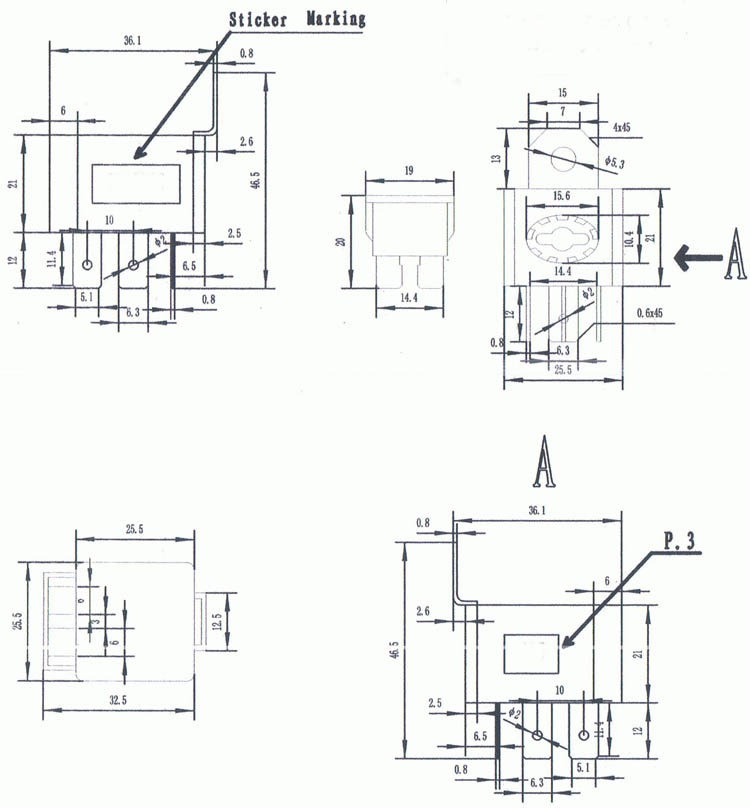

External Dimension:
